BATT24 Charging Station
Charges 24V 7AH and 12V 2.3AH NiCad batteries

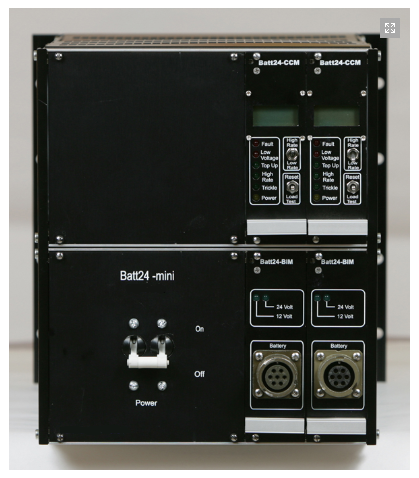

Batt24 NiCad charger powers up to 10 batteries simultaneously within 2 hours and is also available as a single-unit mini charger.
The charging station houses 2 modules per charging unit.Closed Loop DC Servo is contained within the Gauging
The first module is the Charge Control Module (CCM) which is the user interface for the charging station that contains an LCD screen to display voltage and current and indicates charge status using LEDs. The second is the Battery Interface Module (BIM) that connects to the battery.
|
|
Features of the Batt24 NiCad Battery Charging Station:
√ Delivers a 2-hour fast charge or a 4-hour regular charge
√ Will charge 12V and 24V batteries simultaneously
√ No discharge required—charger assesses voltage level and delivers top-up
√ Trickle charger capability maintains cell voltage and allows batteries to remain charging until needed
√ Protects against battery overheating and overcharging
√ Features a discharge control for off-season battery storage
√ Performs load tests to determine whether a battery can hold a charge
√ Features a web browser interface for remote charging

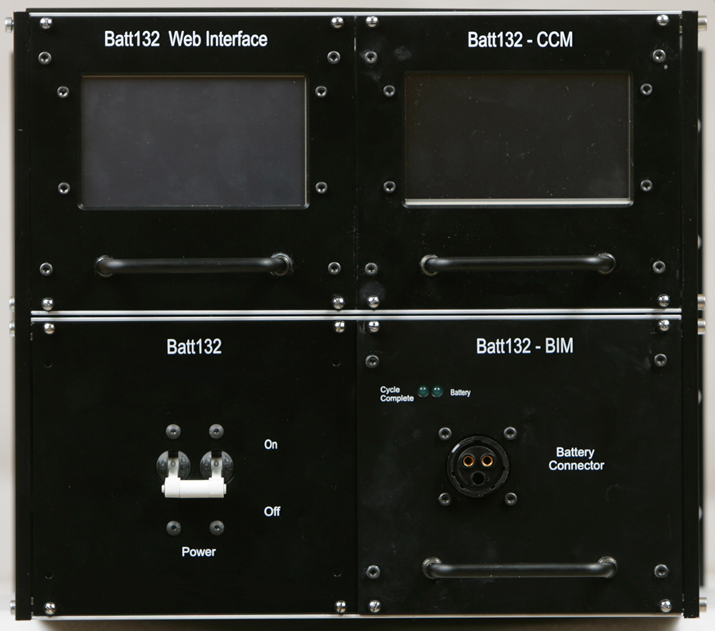

BATT132 Charging Station
Charges 13.2V 40/44AH NiCad batteries
Batt132 NiCad charger powers up to 5 batteries in 6 hours or less. It is also available as a single-unit mini-charger. The charging station houses 2 modules per charging unit: a Charge Control Module (CCM) and Battery Interface Module (BIM).
The Charge Control Module (CCM) is the user interface for the charging station and contains an LCD screen to display voltage and current and indicates charge status using LEDs. The Battery Interface Module (BIM) connects to the battery.
|
|
Features of the Batt132 NiCad Battery Charging Station:
√ No discharge required—charger assesses voltage level and delivers top-up
√ Trickle charger capability maintains cell voltage and allows batteries to remain charging until needed
√ Features a discharge control for off-season battery storage
√ Performs load tests to determine whether a battery can hold a charge
√ Web browser interface for remote charging
√ Features a discharge control for off-season battery storage
√ Performs load tests to determine whether a battery can hold a charge
√ Features a web browser interface for remote charging
Superior Charging Algorithm
Unique algorithms employed for extensive fault detection to reduce cell stress and increase battery life.
These algorithms control:
√ Charging without discharging—voltage levels assessed to top up batteries with the necessary remaining charge
√ Trickling—trickle charger capability maintains cell voltage and allows batteries to remain charging until needed
√ Battery overheating—thermistor sensor monitors battery temperature and prevents overheating with emergency shutoff
√ Battery overcharging—battery cells are balanced automatically to ensure equal and appropriate voltage
